# How uncertainty is represented
### IBiG
### <p>February 11th, 2020</p>
Points of Significance - Nature Methods

---

1. Statistics do not tell us whether we are right. It tells us the **chances of being wrong**.

1. Samples are our **windows to the population**, and their statistics are used to estimate those of the population.

1. **Larger samples** approximate the population better.

1.  Always keep in mind that your **measurements are estimates**, which you should not endow with an aura of exactitude and finality.

1. The **omnipresence of variability** will ensure that each sample will be different.

.content-box-grey[.tiny[
- The **mean** is calculated as the arithmetic average of values and can be unduly influenced by extreme values

- The **standard deviation** is calculated based on the square of the distance of each value from the mean

- The **median** is a more robust measure of location and more suitable for distributions that are skewed or otherwise irregularly shaped
]]

---

---

.middle[

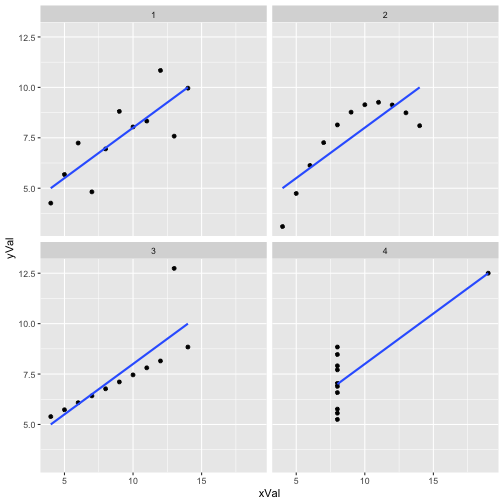

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> mygroup </th>
   <th style="text-align:right;"> MEDIA </th>
   <th style="text-align:right;"> SD </th>
   <th style="text-align:right;"> VAR </th>
   <th style="text-align:right;"> COR </th>
   <th style="text-align:right;"> CC </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> 1 </td>
   <td style="text-align:right;"> 7.5 </td>
   <td style="text-align:right;"> 2.03 </td>
   <td style="text-align:right;"> 4.13 </td>
   <td style="text-align:right;"> 0.82 </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 2 </td>
   <td style="text-align:right;"> 7.5 </td>
   <td style="text-align:right;"> 2.03 </td>
   <td style="text-align:right;"> 4.13 </td>
   <td style="text-align:right;"> 0.82 </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 3 </td>
   <td style="text-align:right;"> 7.5 </td>
   <td style="text-align:right;"> 2.03 </td>
   <td style="text-align:right;"> 4.12 </td>
   <td style="text-align:right;"> 0.82 </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> 4 </td>
   <td style="text-align:right;"> 7.5 </td>
   <td style="text-align:right;"> 2.03 </td>
   <td style="text-align:right;"> 4.12 </td>
   <td style="text-align:right;"> 0.82 </td>
   <td style="text-align:right;"> 3 </td>
  </tr>
</tbody>
</table>
]

---

![](20200211_files/figure-html/unnamed-chunk-3-1.png)

]

---
class: inverse, center, middle

# Part I

### Use boxplot to illustrate the spread and differences of samples

---

## Box plots

1. Visualization methods **enhance our understanding** of sample data and help us make comparisons across samples

1. Box plot is a method for graphically depicting groups of numerical data through their **quartiles**

- A quartile is a type of quantile which **divides the number of data points into four more or less equal parts**, or quarters.

  - The **first quartile** (Q1) is defined as the middle number between the smallest number and the median of the data set

- The **interquartile range** (IQR = Q3 − Q1), which covers the central 50% of the data

  - Quartiles are **insensitive to outliers** and preserve information about the center and spread

---

## Box plots
.center[
.middle[

<img src="sziS9F7.png" width="850">
]
]

???

- The **core element** that gives the box plot its name is a box whose length is the **IQR** and whose width is arbitrary

- A line inside the box shows the **median**, which is not necessarily central

- The plot may be oriented **vertically or horizontally**

- **Whiskers** are conventionally extended to the most extreme data point that is no more than 1.5 × IQR from the edge of the box (Tukey style) or all the way to minimum and maximum of the data values (Spear style)

- The **1.5 multiplier** corresponds to 99.3% coverage of the data for a normal distribution

- **Outliers** beyond the whiskers may be individually plotted.

- Box plot construction requires a **sample of at least n = 5** (preferably larger)
---

## Final considerations

1. For small sample sizes boxplots do not necessarily represent the distribution well

1. Strongly discourage using bar plots with error bars

- These charts continue to be prevalent (we counted 100 figures that used them in 2013 Nature Methods papers, compared to only 20 that used box plots)

  - The choice of baseline can interfere with assessing relative sizes of means and their error bars


##### Useful link: http://shiny.chemgrid.org/boxplotr/

???

- Barplot nascondono la distribuzione del campione

---

# Part II

### How uncertainty is represented

---

## Error bars

1. The **uncertainty** in estimates is customarily represented using error bars

1. A lot of **misconceptions** persist about how error bars relate to statistical significance

1. When asked to estimate the required separation between two points with error bars for a difference at significance P = 0.05, **only 22% of respondents were correct**

???

- Idee sbagliate

---

## Error bars

- **Standard deviation**: it shows how the data are spread

- **Standard error**: it describes how accurate the mean estimate is

- **Confident intervals**: it captures the true mean μ on 95% of occasions

---

## Confident intervals

]

---

## Error bars

<br>
<br>
.center[

]

---

## Error bars

<br>
<br>
.center[

]

---

## Error bars

<br>
<br>
.center[

]

---

## Error bars

<br>
.center[

]

---

## Error bars

<br>
<br>
.center[
.content-box-red[
Be wary of error bars for small sample sizes

THEY ARE NOT ROBUST

it is better to show individual data values
]

]
---

# Error bar rules

]

---

# Error bar rules

.small[
- Error bars and statistics
should only be shown for **independently repeated experiments**, and never for replicates
]

???

- Consider trying to determine whether **deletion of a gene in mice affects tail length**.

- We could choose **one mutant mouse and one wild type**

- **Perform 20 replicate measurements** of each of their tails.

- We could **calculate the means, SDs, and SEs** of the replicate measurements, but these would **not permit us to answer the central question** of whether gene deletion affects tail length, **because n would equal 1 for each genotype**, no matter how often each tail was measured

.small[
- Experimental biologists
are usually trying to compare experimental results with controls, it is usually
**appropriate to show inferential error bars**, such as SE or CI, rather than SD
]

.small[
- 95% CIs capture μ on 95%
of occasions, so you can be 95% confident your interval includes μ
]

.small[
- When n = 3, and double the
SE bars don’t overlap, P < 0.05, and if
double the SE bars just touch, P is close to
0.05
]

---

# Conclusion

1. Error bars can be valuable for understanding results and deciding whether the authors’ **conclusions are justified by the data**

1. When first seeing a figure with error bars, ask yourself:
  - What is n?
  - Are they independent experiments, or just replicates?
  - What kind of error bars are they?

<br>
.content-box-red[.center[Error bars and other statistics **can only be a guide**

You need to **use your biological understanding** to appreciate the meaning of the numbers shown in any figure
]
]

---

.Huge[
END
]
